Churubusco, IN Standing Seam Metal Roof: Frost Black Roofing, Snow Retention & Seamless Gutters

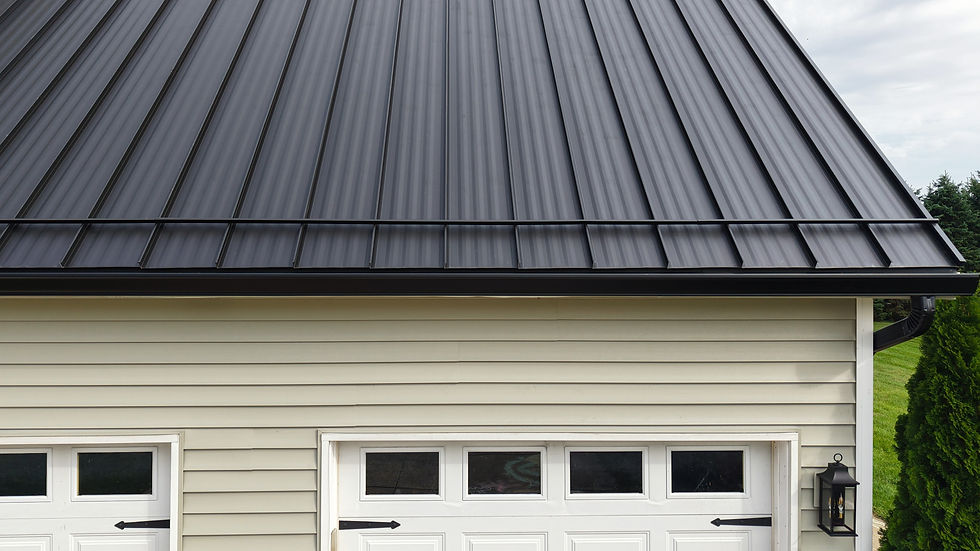

A steep country-style home requires a roofing system designed around more than appearance. For this Churubusco, IN project, Indiana Metal Roofing Systems installed a Frost Black standing seam metal roof, snow-retention system, replacement pipe boots, new skylight, and black 6-inch seamless gutters. With a steep 12/12 roof pitch and no need for tear-off or decking replacement, the project shows how several exterior components can be coordinated into one complete metal roofing system.
Why This Churubusco Roof Was a Strong Candidate for Standing Seam Metal
Before a metal roof installation begins, we evaluate the existing roof structure and determine whether removal, decking replacement, or repairs are necessary. On this home, neither tear-off nor roof-deck replacement was required, allowing the project to move forward without unnecessary demolition.
That determination is important. A roof should not automatically be torn apart simply because new metal is being installed, nor should questionable decking be ignored simply to avoid additional work. The existing conditions should determine the preparation.
The home's 12/12 pitch also influenced the installation. A 12/12 roof rises 12 inches for every 12 inches of horizontal run, creating an approximately 45-degree slope. Steeper roofs can move rain efficiently and create dramatic architectural lines, but they also make fall protection, panel handling, flashing work, and snow management especially important.
Frost Black Standing Seam Roofing and the Home's Exterior Design
Frost Black was selected for the standing seam system, creating a strong contrast against the home's exterior while emphasizing its steep rooflines. Standing seam panels differ significantly from conventional exposed-fastener metal roofing. Instead of installing rows of screws through the visible panel face, standing seam systems use raised seams and concealed attachment points. This produces the uninterrupted vertical lines associated with premium architectural metal roofing while protecting primary attachment components beneath the finished surface.
The appearance is only part of the advantage. Concealed attachment also helps the roofing system accommodate the natural expansion and contraction that occurs as metal temperatures change. On a home with prominent roof planes, that combination of clean lines and engineered attachment allows the roof to become an architectural feature without sacrificing its primary responsibility: protecting the structure below.
Replacing the Skylight During the Metal Roof Installation
This Churubusco, IN project included replacement of the home's skylight. Skylights require particular attention during a metal roof project because they interrupt the continuous drainage plane. Water traveling down the roof must be redirected around the opening and returned safely onto the roofing surface below.
Replacing an aging skylight while the surrounding roofing work is being completed can provide an opportunity to coordinate the new unit with fresh flashing rather than adapting the new roof around an older component that may have a shorter remaining service life. The important principle is straightforward: penetrations should be treated as part of the roofing system, not as objects sitting on top of it.
Why Pipe Boots Matter on a Metal Roof
The work also called for replacement of the pipe boots. Plumbing vent pipes pass directly through the roof, making their weatherproofing details critical. A pipe boot seals the transition between the roofing surface and the pipe while accommodating the shape of the penetration.
Although pipe boots occupy very little roof area, they can become vulnerable points when they deteriorate, separate, crack, or are improperly integrated with the surrounding roofing. During a major metal roofing project, inspecting and replacing questionable penetration components helps ensure the surrounding roof and the penetration detail begin their service lives together.
Snow Retention on a Steep Standing Seam Metal Roof
The new roof also received a snow rail system, an important consideration for a steep metal roof in Northeast Indiana.
Snow retention is often misunderstood. Its purpose is not simply to keep snow permanently attached to a roof. A properly designed system helps control accumulated snow so it can leave the roof more gradually through melting, sublimation, and smaller releases rather than sliding from a roof plane unexpectedly.
Industry Insight: The Metal Construction Association explains that snow-retention systems create a load chain that transfers the sliding forces of accumulated snow through the system and ultimately into the building structure. Proper design therefore requires the components and attachment points to be tested or engineered for the forces expected on the specific roof rather than selecting snow guards based on appearance or quantity alone.
A particularly important advantage for standing seam metal roofs is that properly engineered seam-clamped snow-retention systems can be mechanically attached to the standing seams without penetrating the roof panels. This allows snow loads to be transferred through tested attachment points while preserving the nonpenetrating design of the standing seam roof system.
Black 6-Inch Seamless Gutters Complete the Drainage System
The project was finished with black 6-inch seamless gutters, coordinating the drainage system with the Frost Black roof. Gutters and roofing should be considered together because both are responsible for controlling water. The roof collects and directs precipitation toward the eaves; the gutters receive that runoff and move it toward downspouts and designated discharge areas.
A seamless gutter is fabricated in long continuous sections rather than assembled from numerous short pieces. Fewer field seams mean fewer joints along the gutter run where separation or leakage could potentially develop. The 6-inch size also provides additional carrying capacity compared with smaller residential gutter profiles, which can be useful when large or steep roof planes deliver water toward the eaves quickly.
Coordinating Snow Rails and Gutters on the Same Roof
Snow retention and gutters become especially important when installed together.
Without controlled snow movement, accumulated snow and ice can slide toward the eave and place sudden forces on gutters. A properly planned snow-retention system helps manage that risk while the gutters handle liquid precipitation and snowmelt.
This illustrates why a complete metal roofing project is more than the panels themselves. The roof, snow rails, gutters, skylight flashing, pipe boots, trim, and drainage strategy should complement one another.
Local Craftsmanship and Roofing Standards
Our approach to metal roofing combines careful project evaluation with installation practices designed around the individual property. We focus on metal roofing systems and the supporting details that influence their long-term performance rather than treating the visible panels as the entire project.
Our company credentials include an A+ BBB rating with zero complaints, a 4.9-star Google rating, more than 25 years of combined experience, full licensing, bonding and insurance, and manufacturer-trained installers. The project documentation also emphasizes full jobsite protection, cleanup, magnetic nail sweeping, and a final inspection before a project is considered complete.
Frequently Asked Questions About Standing Seam Roofing in Churubusco
Does a 12/12 pitch roof require special installation considerations?
Yes. A 12/12 pitch is approximately 45 degrees, making safe access, material handling, fall protection, flashing, and snow movement particularly important. The steep slope also makes roof workmanship highly visible.
Why install snow rails on standing seam metal roofing?
Smooth metal surfaces can allow accumulated snow to release suddenly. Snow retention helps control that movement around areas where falling snow could affect people, vehicles, gutters, landscaping, or lower roof sections. The system should be selected and engineered for the specific roof conditions.
Can seamless gutters be installed with a new metal roof?
Yes. Gutters are an important part of the overall water-management system. Correct sizing, placement, slope, downspout capacity, and attachment all influence how effectively runoff is moved away from the property.
Should an older skylight be replaced when installing a new metal roof?
It depends on the skylight's condition and remaining service life. When replacement is appropriate, completing it during the roofing project allows the new skylight and flashing to be integrated directly with the new roof.
Does every standing seam project require a tear-off?
No. The existing roofing, deck condition, local requirements, roof design, and selected installation method all matter. On this Churubusco project, no tear-off or decking replacement was needed.
Conclusion
This Churubusco project demonstrates how a standing seam metal roof can be designed as a complete exterior system rather than a simple panel replacement. The Frost Black standing seam roofing, snow rail, replacement skylight and pipe boots, and black 6-inch seamless gutters each addressed a different part of the home's long-term protection. On a steep 12/12 roof, coordinating water drainage, penetration details, snow movement, attachment, and finishing components is especially important. The finished system brings those elements together while giving the home the clean, bold appearance that makes standing seam metal roofing such a distinctive choice for Northeast Indiana properties.
